The Chi-Square Distribution

56 Facts About the Chi-Square Distribution

The notation for the chi-square distribution is:

\chi \sim {\chi }_{df}^{2}


where df = degrees of freedom which depends on how chi-square is being used. (If you want to practice calculating chi-square probabilities then use df = n – 1. The degrees of freedom for the three major uses are each calculated differently.)

For the χ2 distribution, the population mean is μ = df and the population standard deviation is \sigma =\sqrt{2\left(df\right)}.

The random variable is shown as χ2.

The random variable for a chi-square distribution with k degrees of freedom is the sum of k independent, squared standard normal variables.

χ2 = (Z1)2 + (Z2)2 + … + (Zk)2

  1. The curve is nonsymmetrical and skewed to the right.
  2. There is a different chi-square curve for each df.
    Part (a) shows a chi-square curve with 2 degrees of freedom. It is nonsymmetrical and slopes downward continually. Part (b) shows a chi-square curve with 24 df. This nonsymmetrical curve does have a peak and is skewed to the right. The graphs illustrate that different degrees of freedom produce different chi-square curves.
  3. The test statistic for any test is always greater than or equal to zero.
  4. When df > 90, the chi-square curve approximates the normal distribution. For X ~ {\chi }_{1,000}^{2} the mean, μ = df = 1,000 and the standard deviation, σ = \sqrt{2\left(1,000\right)} = 44.7. Therefore, X ~ N(1,000, 44.7), approximately.
  5. The mean, μ, is located just to the right of the peak.

References

Data from Parade Magazine.

“HIV/AIDS Epidemiology Santa Clara County.”Santa Clara County Public Health Department, May 2011.

Chapter Review

The chi-square distribution is a useful tool for assessment in a series of problem categories. These problem categories include primarily (i) whether a data set fits a particular distribution, (ii) whether the distributions of two populations are the same, (iii) whether two events might be independent, and (iv) whether there is a different variability than expected within a population.

An important parameter in a chi-square distribution is the degrees of freedom df in a given problem. The random variable in the chi-square distribution is the sum of squares of df standard normal variables, which must be independent. The key characteristics of the chi-square distribution also depend directly on the degrees of freedom.

The chi-square distribution curve is skewed to the right, and its shape depends on the degrees of freedom df. For df > 90, the curve approximates the normal distribution. Test statistics based on the chi-square distribution are always greater than or equal to zero. Such application tests are almost always right-tailed tests.

Formula Review

χ2 = (Z1)2 + (Z2)2 + … (Zdf)2 chi-square distribution random variable

μχ2 = df chi-square distribution population mean

{\sigma }_{{\chi }^{2}}\text{=}\sqrt{2\left(df\right)} Chi-Square distribution population standard deviation

If the number of degrees of freedom for a chi-square distribution is 25, what is the population mean and standard deviation?

mean = 25 and standard deviation = 7.0711

If df > 90, the distribution is _____________. If df = 15, the distribution is ________________.

When does the chi-square curve approximate a normal distribution?

when the number of degrees of freedom is greater than 90

Where is μ located on a chi-square curve?

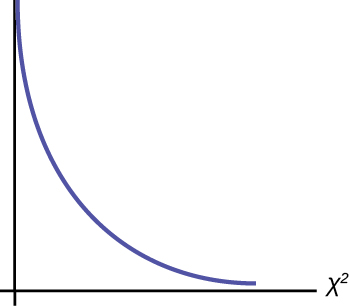

Is it more likely the df is 90, 20, or two in the graph?

This is a nonsymmetrical chi-square curve which slopes downward continually.

df = 2

Homework

Decide whether the following statements are true or false.

As the number of degrees of freedom increases, the graph of the chi-square distribution looks more and more symmetrical.

true

The standard deviation of the chi-square distribution is twice the mean.

The mean and the median of the chi-square distribution are the same if df = 24.

false
