Confidence Intervals
A Single Population Mean using the Student t Distribution
In practice, we rarely know the population standard deviation. In the past, when the sample size was large, this did not present a problem to statisticians. They used the sample standard deviation s as an estimate for σ and proceeded as before to calculate a confidence interval with close enough results. However, statisticians ran into problems when the sample size was small. A small sample size caused inaccuracies in the confidence interval.
William S. Goset (1876–1937) of the Guinness brewery in Dublin, Ireland ran into this problem. His experiments with hops and barley produced very few samples. Just replacing σ with s did not produce accurate results when he tried to calculate a confidence interval. He realized that he could not use a normal distribution for the calculation; he found that the actual distribution depends on the sample size. This problem led him to “discover” what is called the Student’s tdistribution. The name comes from the fact that Gosset wrote under the pen name “Student.”
Up until the mid1970s, some statisticians used the normal distribution approximation for large sample sizes and used the Student’s tdistribution only for sample sizes of at most 30. With graphing calculators and computers, the practice now is to use the Student’s tdistribution whenever s is used as an estimate for σ.
If you draw a simple random sample of size n from a population that has an approximately normal distribution with mean μ and unknown population standard deviation σ and calculate the tscore t = , then the tscores follow a Student’s tdistribution with n – 1 degrees of freedom. The tscore has the same interpretation as the zscore. It measures how far is from its mean μ. For each sample size n, there is a different Student’s tdistribution.
The degrees of freedom, n – 1, come from the calculation of the sample standard deviation s. In (Figure), we used n deviations to calculate s. Because the sum of the deviations is zero, we can find the last deviation once we know the other n – 1 deviations. The other n – 1 deviations can change or vary freely. We call the number n – 1 the degrees of freedom (df).
 The graph for the Student’s tdistribution is similar to the standard normal curve.
 The mean for the Student’s tdistribution is zero and the distribution is symmetric about zero.
 The Student’s tdistribution has more probability in its tails than the standard normal distribution because the spread of the tdistribution is greater than the spread of the standard normal. So the graph of the Student’s tdistribution will be thicker in the tails and shorter in the center than the graph of the standard normal distribution.
 The exact shape of the Student’s tdistribution depends on the degrees of freedom. As the degrees of freedom increases, the graph of Student’s tdistribution becomes more like the graph of the standard normal distribution.
 The underlying population of individual observations is assumed to be normally distributed with unknown population mean μ and unknown population standard deviation σ. The size of the underlying population is generally not relevant unless it is very small. If it is bell shaped (normal) then the assumption is met and doesn’t need discussion. Random sampling is assumed, but that is a completely separate assumption from normality.
Calculators and computers can easily calculate any Student’s tprobabilities. The TI83,83+, and 84+ have a tcdf function to find the probability for given values of t. The grammar for the tcdf command is tcdf(lower bound, upper bound, degrees of freedom). However for confidence intervals, we need to use inverse probability to find the value of t when we know the probability.
For the TI84+ you can use the invT command on the DISTRibution menu. The invT command works similarly to the invnorm. The invT command requires two inputs: invT(area to the left, degrees of freedom) The output is the tscore that corresponds to the area we specified.
The TI83 and 83+ do not have the invT command. (The TI89 has an inverse T command.)
A probability table for the Student’s tdistribution can also be used. The table gives tscores that correspond to the confidence level (column) and degrees of freedom (row). (The TI86 does not have an invT program or command, so if you are using that calculator, you need to use a probability table for the Student’s tDistribution.) When using a ttable, note that some tables are formatted to show the confidence level in the column headings, while the column headings in some tables may show only corresponding area in one or both tails.
A Student’s t table (See (Figure)) gives tscores given the degrees of freedom and the righttailed probability. The table is very limited. Calculators and computers can easily calculate any Student’s tprobabilities.
 T ~ t_{df} where df = n – 1.
 For example, if we have a sample of size n = 20 items, then we calculate the degrees of freedom as df = n – 1 = 20 – 1 = 19 and we write the distribution as T ~ t_{19}.
If the population standard deviation is not known, the error bound for a population mean is:
 ,
 is the tscore with area to the right equal to ,
 use df = n – 1 degrees of freedom, and
 s = sample standard deviation.
The format for the confidence interval is:
.
To calculate the confidence interval directly:
Press STAT.
Arrow over to TESTS.
Arrow down to 8:TInterval and press ENTER (or just press 8).
Suppose you do a study of acupuncture to determine how effective it is in relieving pain. You measure sensory rates for 15 subjects with the results given. Use the sample data to construct a 95% confidence interval for the mean sensory rate for the population (assumed normal) from which you took the data.
The solution is shown stepbystep and by using the TI83, 83+, or 84+ calculators.
 The first solution is stepbystep (Solution A).
 The second solution uses the TI83+ and TI84 calculators (Solution B).
Solution ATo find the confidence interval, you need the sample mean, , and the EBM.
= 8.2267 s = 1.6722 n = 15
df = 15 – 1 = 14 CL so α = 1 – CL = 1 – 0.95 = 0.05
= 0.025
The area to the right of t_{0.025} is 0.025, and the area to the left of t_{0.025} is 1 – 0.025 = 0.975
using invT(.975,14) on the TI84+ calculator.
– EBM = 8.2267 – 0.9240 = 7.3
+ EBM = 8.2267 + 0.9240 = 9.15
The 95% confidence interval is (7.30, 9.15).
We estimate with 95% confidence that the true population mean sensory rate is between 7.30 and 9.15.
Press STAT
and arrow over to TESTS
.
Arrow down to 8:TInterval
and press ENTER
(or you can just press 8
).
Arrow to Data
and press ENTER
.
Arrow down to List
and enter the list name where you put the data.
There should be a 1 after Freq
.
Arrow down to Clevel
and enter 0.95
Arrow down to Calculate
and press ENTER
.
The 95% confidence interval is (7.3006, 9.1527)
When calculating the error bound, a probability table for the Student’s tdistribution can also be used to find the value of t. The table gives tscores that correspond to the confidence level (column) and degrees of freedom (row); the tscore is found where the row and column intersect in the table.
You do a study of hypnotherapy to determine how effective it is in increasing the number of hours of sleep subjects get each night. You measure hours of sleep for 12 subjects with the following results. Construct a 95% confidence interval for the mean number of hours slept for the population (assumed normal) from which you took the data.
8.2; 9.1; 7.7; 8.6; 6.9; 11.2; 10.1; 9.9; 8.9; 9.2; 7.5; 10.5
The Human Toxome Project (HTP) is working to understand the scope of industrial pollution in the human body. Industrial chemicals may enter the body through pollution or as ingredients in consumer products. In October 2008, the scientists at HTP tested cord blood samples for 20 newborn infants in the United States. The cord blood of the “In utero/newborn” group was tested for 430 industrial compounds, pollutants, and other chemicals, including chemicals linked to brain and nervous system toxicity, immune system toxicity, and reproductive toxicity, and fertility problems. There are health concerns about the effects of some chemicals on the brain and nervous system. (Figure) shows how many of the targeted chemicals were found in each infant’s cord blood.
79  145  147  160  116  100  159  151  156  126
137  83  156  94  121  144  123  114  139  99
Use this sample data to construct a 90% confidence interval for the mean number of targeted industrial chemicals to be found in an in infant’s blood.
Solution AFrom the sample, you can calculate = 127.45 and s = 25.965. There are 20 infants in the sample, so n = 20, and df = 20 – 1 = 19.
You are asked to calculate a 90% confidence interval: CL = 0.90, so α = 1 – CL = 1 – 0.90 = 0.10
By definition, the area to the right of t_{0.05} is 0.05 and so the area to the left of t_{0.05} is 1 – 0.05 = 0.95.
Use a table, calculator, or computer to find that t_{0.05} = 1.729.
– EBM = 127.45 – 10.038 = 117.412
+ EBM = 127.45 + 10.038 = 137.488
We estimate with 90% confidence that the mean number of all targeted industrial chemicals found in cord blood in the United States is between 117.412 and 137.488.
Solution B
Enter the data as a list.
Press STAT
and arrow over to TESTS
.
Arrow down to 8:TInterval
and press ENTER
(or you can just press 8
). Arrow to Data and press ENTER
.
Arrow down to List
and enter the list name where you put the data.
Arrow down to Freq
and enter 1.
Arrow down to Clevel
and enter 0.90
Arrow down to Calculate
and press ENTER
.
The 90% confidence interval is (117.41, 137.49).
A random sample of statistics students were asked to estimate the total number of hours they spend watching television in an average week. The responses are recorded in (Figure). Use this sample data to construct a 98% confidence interval for the mean number of hours statistics students will spend watching television in one week.
0  3  1  20  9
5  10  1  10  4
14  2  4  4  5
References
“America’s Best Small Companies.” Forbes, 2013. Available online at http://www.forbes.com/bestsmallcompanies/list/ (accessed July 2, 2013).
Data from Microsoft Bookshelf.
Data from http://www.businessweek.com/.
Data from http://www.forbes.com/.
“Disclosure Data Catalog: Leadership PAC and Sponsors Report, 2012.” Federal Election Commission. Available online at http://www.fec.gov/data/index.jsp (accessed July 2,2013).
“Human Toxome Project: Mapping the Pollution in People.” Environmental Working Group. Available online at http://www.ewg.org/sites/humantoxome/participants/participantgroup.php?group=in+utero%2Fnewborn (accessed July 2, 2013).
“Metadata Description of Leadership PAC List.” Federal Election Commission. Available online at http://www.fec.gov/finance/disclosure/metadata/metadataLeadershipPacList.shtml (accessed July 2, 2013).
Chapter Review
In many cases, the researcher does not know the population standard deviation, σ, of the measure being studied. In these cases, it is common to use the sample standard deviation, s, as an estimate of σ. The normal distribution creates accurate confidence intervals when σ is known, but it is not as accurate when s is used as an estimate. In this case, the Student’s tdistribution is much better. Define a tscore using the following formula:
The tscore follows the Student’s tdistribution with n – 1 degrees of freedom. The confidence interval under this distribution is calculated with EBM = where is the tscore with area to the right equal to , s is the sample standard deviation, and n is the sample size. Use a table, calculator, or computer to find for a given α.
Formula Review
s = the standard deviation of sample values.
is the formula for the tscore which measures how far away a measure is from the population mean in the Student’s tdistribution
df = n – 1; the degrees of freedom for a Student’s tdistribution where n represents the size of the sample
T~t_{df} the random variable, T, has a Student’s tdistribution with df degrees of freedom
= the error bound for the population mean when the population standard deviation is unknown
is the tscore in the Student’s tdistribution with area to the right equal to
The general form for a confidence interval for a single mean, population standard deviation unknown, Student’s t is given by (lower bound, upper bound)
= (point estimate – EBM, point estimate + EBM)
=
Use the following information to answer the next five exercises. A hospital is trying to cut down on emergency room wait times. It is interested in the amount of time patients must wait before being called back to be examined. An investigation committee randomly surveyed 70 patients. The sample mean was 1.5 hours with a sample standard deviation of 0.5 hours.
Identify the following:
 =_______
 =_______
 n =_______
 n – 1 =_______
Define the random variables X and in words.
X is the number of hours a patient waits in the emergency room before being called back to be examined. is the mean wait time of 70 patients in the emergency room.
Which distribution should you use for this problem?
Construct a 95% confidence interval for the population mean time spent waiting. State the confidence interval, sketch the graph, and calculate the error bound.
CI: (1.3808, 1.6192)
EBM = 0.12
Explain in complete sentences what the confidence interval means.
Use the following information to answer the next six exercises: One hundred eight Americans were surveyed to determine the number of hours they spend watching television each month. It was revealed that they watched an average of 151 hours each month with a standard deviation of 32 hours. Assume that the underlying population distribution is normal.
Identify the following:
 =_______
 =_______
 n =_______
 n – 1 =_______
 = 151
 = 32
 n = 108
 n – 1 = 107
Define the random variable X in words.
Define the random variable in words.
is the mean number of hours spent watching television per month from a sample of 108 Americans.
Which distribution should you use for this problem?
Construct a 99% confidence interval for the population mean hours spent watching television per month. (a) State the confidence interval, (b) sketch the graph, and (c) calculate the error bound.
CI: (142.92, 159.08)
EBM = 8.08
Why would the error bound change if the confidence level were lowered to 95%?
Use the following information to answer the next 13 exercises: The data in (Figure) are the result of a random survey of 39 national flags (with replacement between picks) from various countries. We are interested in finding a confidence interval for the true mean number of colors on a national flag. Let X = the number of colors on a national flag.
X  Freq.

1  1
2  7
3  18
4  7
5  6
Calculate the following:
 =______
 =______
 n =______
 3.26
 1.02
 39
Define the random variable in words.
What is estimating?
μ
Is known?
As a result of your answer to (Figure), state the exact distribution to use when calculating the confidence interval.
t_{38}
Construct a 95% confidence interval for the true mean number of colors on national flags.
How much area is in both tails (combined)?
How much area is in each tail?
0.025
Calculate the following:
 lower limit
 upper limit
 error bound
The 95% confidence interval is_____.
(2.93, 3.59)

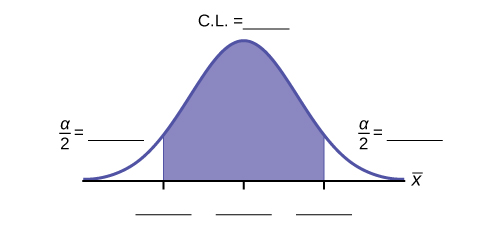

Fill in the blanks on the graph with the areas, the upper and lower limits of the Confidence Interval and the sample mean.
In one complete sentence, explain what the interval means.
We are 95% confident that the true mean number of colors for national flags is between 2.93 colors and 3.59 colors.
Using the same , , and level of confidence, suppose that n were 69 instead of 39. Would the error bound become larger or smaller? How do you know?
The error bound would become EBM = 0.245. This error bound decreases because as sample sizes increase, variability decreases and we need less interval length to capture the true mean.
Using the same , , and n = 39, how would the error bound change if the confidence level were reduced to 90%? Why?
Homework
In six packages of “The Flintstones® Real Fruit Snacks” there were five BamBam snack pieces. The total number of snack pieces in the six bags was 68. We wish to calculate a 96% confidence interval for the population proportion of BamBam snack pieces.
 Define the random variables X and P′ in words.
 Which distribution should you use for this problem? Explain your choice
 Calculate p′.
 Construct a 96% confidence interval for the population proportion of BamBam snack pieces per bag.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 Do you think that six packages of fruit snacks yield enough data to give accurate results? Why or why not?
A random survey of enrollment at 35 community colleges across the United States yielded the following figures: 6,414; 1,550; 2,109; 9,350; 21,828; 4,300; 5,944; 5,722; 2,825; 2,044; 5,481; 5,200; 5,853; 2,750; 10,012; 6,357; 27,000; 9,414; 7,681; 3,200; 17,500; 9,200; 7,380; 18,314; 6,557; 13,713; 17,768; 7,493; 2,771; 2,861; 1,263; 7,285; 28,165; 5,080; 11,622. Assume the underlying population is normal.

 = __________
 = __________
 n = __________
 n – 1 = __________
 Define the random variables and in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 95% confidence interval for the population mean enrollment at community colleges in the United States.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 What will happen to the error bound and confidence interval if 500 community colleges were surveyed? Why?

 8629
 6944
 35
 34

 CI: (6244, 11,014)

 EB = 2385
 It will become smaller
Suppose that a committee is studying whether or not there is waste of time in our judicial system. It is interested in the mean amount of time individuals waste at the courthouse waiting to be called for jury duty. The committee randomly surveyed 81 people who recently served as jurors. The sample mean wait time was eight hours with a sample standard deviation of four hours.

 = __________
 = __________
 n = __________
 n – 1 = __________
 Define the random variables and in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 95% confidence interval for the population mean time wasted.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 Explain in a complete sentence what the confidence interval means.
A pharmaceutical company makes tranquilizers. It is assumed that the distribution for the length of time they last is approximately normal. Researchers in a hospital used the drug on a random sample of nine patients. The effective period of the tranquilizer for each patient (in hours) was as follows: 2.7; 2.8; 3.0; 2.3; 2.3; 2.2; 2.8; 2.1; and 2.4.

 = __________
 = __________
 n = __________
 n – 1 = __________
 Define the random variable in words.
 Define the random variable in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 95% confidence interval for the population mean length of time.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 What does it mean to be “95% confident” in this problem?

 = 2.51
 = 0.318
 n = 9
 n – 1 = 8
 the effective length of time for a tranquilizer
 the mean effective length of time of tranquilizers from a sample of nine patients
 We need to use a Student’st distribution, because we do not know the population standard deviation.

 CI: (2.27, 2.76)
 Check student’s solution.
 EBM: 0.25
 If we were to sample many groups of nine patients, 95% of the samples would contain the true population mean length of time.
Suppose that 14 children, who were learning to ride twowheel bikes, were surveyed to determine how long they had to use training wheels. It was revealed that they used them an average of six months with a sample standard deviation of three months. Assume that the underlying population distribution is normal.

 = __________
 = __________
 n = __________
 n – 1 = __________
 Define the random variable in words.
 Define the random variable in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 99% confidence interval for the population mean length of time using training wheels.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 Why would the error bound change if the confidence level were lowered to 90%?
The Federal Election Commission (FEC) collects information about campaign contributions and disbursements for candidates and political committees each election cycle. A political action committee (PAC) is a committee formed to raise money for candidates and campaigns. A Leadership PAC is a PAC formed by a federal politician (senator or representative) to raise money to help other candidates’ campaigns.
The FEC has reported financial information for 556 Leadership PACs that operating during the 2011–2012 election cycle. The following table shows the total receipts during this cycle for a random selection of 30 Leadership PACs.
?46,500.00  ?0  ?40,966.50  ?105,887.20  ?5,175.00
?29,050.00  ?19,500.00  ?181,557.20  ?31,500.00  ?149,970.80
?2,555,363.20  ?12,025.00  ?409,000.00  ?60,521.70  ?18,000.00
?61,810.20  ?76,530.80  ?119,459.20  ?0  ?63,520.00
?6,500.00  ?502,578.00  ?705,061.10  ?708,258.90  ?135,810.00
?2,000.00  ?2,000.00  ?0  ?1,287,933.80  ?219,148.30
Use this sample data to construct a 96% confidence interval for the mean amount of money raised by all Leadership PACs during the 2011–2012 election cycle. Use the Student’s tdistribution.
Note that we are not given the population standard deviation, only the standard deviation of the sample.
There are 30 measures in the sample, so n = 30, and df = 30 – 1 = 29
CL = 0.96, so α = 1 – CL = 1 – 0.96 = 0.04
= 2.150
– EBM = ?251,854.23 – ?204,561.66 = ?47,292.57
+ EBM = ?251,854.23+ ?204,561.66 = ?456,415.89
We estimate with 96% confidence that the mean amount of money raised by all Leadership PACs during the 2011–2012 election cycle lies between ?47,292.57 and ?456,415.89.
Alternate Solution
Enter the data as a list.
Press STAT
and arrow over to TESTS
.
Arrow down to 8:TInterval
.
Press ENTER
.
Arrow to Data and press ENTER
.
Arrow down and enter the name of the list where the data is stored.
Enter Freq
: 1
Enter CLevel
: 0.96
Arrow down to Calculate
and press Enter
.
The 96% confidence interval is (?47,262, ?456,447).
The difference between solutions arises from rounding differences.
Forbes magazine published data on the best small firms in 2012. These were firms that had been publicly traded for at least a year, have a stock price of at least ?5 per share, and have reported annual revenue between ?5 million and ?1 billion. The (Figure) shows the ages of the corporate CEOs for a random sample of these firms.
48  58  51  61  56
59  74  63  53  50
59  60  60  57  46
55  63  57  47  55
57  43  61  62  49
67  67  55  55  49
Use this sample data to construct a 90% confidence interval for the mean age of CEO’s for these top small firms. Use the Student’s tdistribution.
Unoccupied seats on flights cause airlines to lose revenue. Suppose a large airline wants to estimate its mean number of unoccupied seats per flight over the past year. To accomplish this, the records of 225 flights are randomly selected and the number of unoccupied seats is noted for each of the sampled flights. The sample mean is 11.6 seats and the sample standard deviation is 4.1 seats.

 = __________
 = __________
 n = __________
 n1 = __________
 Define the random variables and in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 92% confidence interval for the population mean number of unoccupied seats per flight.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.

 = 11.6
 = 4.1
 n = 225
 n – 1 = 224
 X is the number of unoccupied seats on a single flight. is the mean number of unoccupied seats from a sample of 225 flights.
 We will use a Student’st distribution, because we do not know the population standard deviation.

 CI: (11.12 , 12.08)
 Check student’s solution.
 EBM: 0.48
In a recent sample of 84 used car sales costs, the sample mean was ?6,425 with a standard deviation of ?3,156. Assume the underlying distribution is approximately normal.
 Which distribution should you use for this problem? Explain your choice.
 Define the random variable in words.
 Construct a 95% confidence interval for the population mean cost of a used car.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 Explain what a “95% confidence interval” means for this study.
Six different national brands of chocolate chip cookies were randomly selected at the supermarket. The grams of fat per serving are as follows: 8; 8; 10; 7; 9; 9. Assume the underlying distribution is approximately normal.
 Construct a 90% confidence interval for the population mean grams of fat per serving of chocolate chip cookies sold in supermarkets.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 If you wanted a smaller error bound while keeping the same level of confidence, what should have been changed in the study before it was done?
 Go to the store and record the grams of fat per serving of six brands of chocolate chip cookies.
 Calculate the mean.
 Is the mean within the interval you calculated in part a? Did you expect it to be? Why or why not?

 CI: (7.64 , 9.36)

 EBM: 0.86
 The sample should have been increased.
 Answers will vary.
 Answers will vary.
 Answers will vary.
A survey of the mean number of cents off that coupons give was conducted by randomly surveying one coupon per page from the coupon sections of a recent San Jose Mercury News. The following data were collected: 20¢; 75¢; 50¢; 65¢; 30¢; 55¢; 40¢; 40¢; 30¢; 55¢; ?1.50; 40¢; 65¢; 40¢. Assume the underlying distribution is approximately normal.

 = __________
 = __________
 n = __________
 n1 = __________
 Define the random variables and in words.
 Which distribution should you use for this problem? Explain your choice.
 Construct a 95% confidence interval for the population mean worth of coupons.
 State the confidence interval.
 Sketch the graph.
 Calculate the error bound.
 If many random samples were taken of size 14, what percent of the confidence intervals constructed should contain the population mean worth of coupons? Explain why.
Use the following information to answer the next two exercises: A quality control specialist for a restaurant chain takes a random sample of size 12 to check the amount of soda served in the 16 oz. serving size. The sample mean is 13.30 with a sample standard deviation of 1.55. Assume the underlying population is normally distributed.
Find the 95% Confidence Interval for the true population mean for the amount of soda served.
 (12.42, 14.18)
 (12.32, 14.29)
 (12.50, 14.10)
 Impossible to determine
b
What is the error bound?
 0.87
 1.98
 0.99
 1.74
Glossary
 Degrees of Freedom (df)
 the number of objects in a sample that are free to vary
 Normal Distribution
 a continuous random variable (RV) with pdf , where μ is the mean of the distribution and σ is the standard deviation, notation: X ~ N(μ,σ). If μ = 0 and σ = 1, the RV is called the standard normal distribution.
 Standard Deviation
 a number that is equal to the square root of the variance and measures how far data values are from their mean; notation: s for sample standard deviation and σ for population standard deviation
 Student’s tDistribution
 investigated and reported by William S. Gossett in 1908 and published under the pseudonym Student; the major characteristics of the random variable (RV) are:
 It is continuous and assumes any real values.
 The pdf is symmetrical about its mean of zero. However, it is more spread out and flatter at the apex than the normal distribution.
 It approaches the standard normal distribution as n get larger.
 There is a “family of t–distributions: each representative of the family is completely defined by the number of degrees of freedom, which is one less than the number of data.
